Orange Peel Grab Gantry Crane for Scrap Metal Yard

Orange Peel Grab Gantry Crane for Scrap Metal Yard

Yuantai Crane are focusing on various material handling, especially in metal processing and handling. There are various types of steel mill cranes are available from us including overhead crane for ladle, scrap, coil , pipe, plate, billet handling and gantry cranes for scrap, and various steel products handling. As for outdoor scrap handling, the orange peal grab  gantry crane are the primary choice. Based on your steel scrap yard conditions and lifting requirements, the scrap handling gantry crane can be designed and manufactured to meet your very needs and requirements. Gantry crane for outdoor steel scrap handling in scrap yard. Customized capacity, lifting height,crane span, crane control, & orange peel grabs. Scrape handling gantry crane 10 ton for your reference.

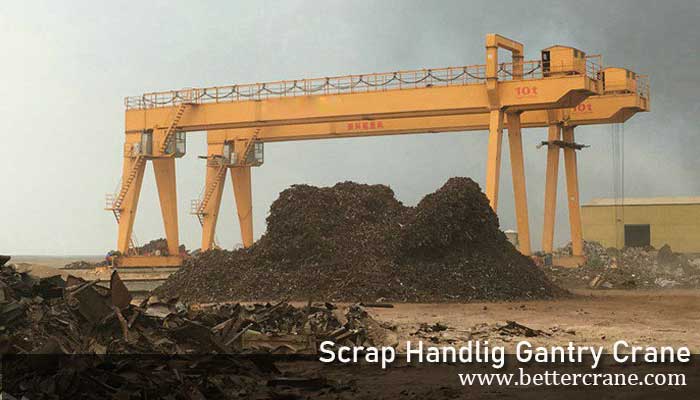

Scrap handling gantry cranes with orange peel grab

Scrap Handling Gantry Cranes are usually double girder gantry crane,equipped with orange peel grab bucks and are widely used in metal yards to handle steel scraps. Scrap handling grab gantry cranes are designed to account for the temperature, humidity, acidity, and alkalinity of the outdoor environment, particularly in scrap yards near the sea or rivers.

10 ton gantry crane for steel scrap handling in yard

10 Ton gantry cranes have a high site utilization ratio, a wide operating range, adaptability, and strong versatility, making them ideal for handling steel scraps in outdoor yards.Gantry cranes are primarily used for freight yard, bulk cargo, and bulk cargo outside loading and unloading.

Advantages of steel scrap gantry cranes

Where an overhead crane or crane runway is impractical, gantry cranes with a runway on the ground can be used.Comparing gantry cranes to an overhead travelling crane system, they are more economical.Gantry crane can be used in various industrial applications and uses, such as,  indoors and outdoors. The industrial gantry cranes can be used when the existing factory structure which cannot bear the wheel loads of the overhead crane; or loads needs to be handled outside the crane span and when the relocation of the crane is needed after the work at a certain site is finished.

Why to use an orange peel grab?

Materials that can't be managed by a Clamshell Grab will be grabbed with an Orange Peel Grab (also known as a Cactus Grab or Polyp Grab). Either the handled materials are too large, or an orange peel grab allows for greater penetration into the handled materials. These grabs can be carried out with open shells, partially closed shells, or completely closed shells, depending on the size and nature of the materials that will be handled with the Orange Peel Grab. The materials that will be managed with the Orange Peel Grabs also influence its weight and method of execution. The grab specialist makes adjustments to her captures depending on the application.


Types of orange peel grab for scrap handling

The majority of times, iron refuse is handled with orange peel grabs. However, scrap appears in a wide variety of sizes and shapes. A grab that works well with shredded metal won't necessarily work well with heavy melting scrap. As a result, there are various grab model kinds. To optimize the grab for each unique application, variations in the amount of shells, shape, and spacing between shells are possible. Please get in touch with us if you have any questions about the sort of grab you require.

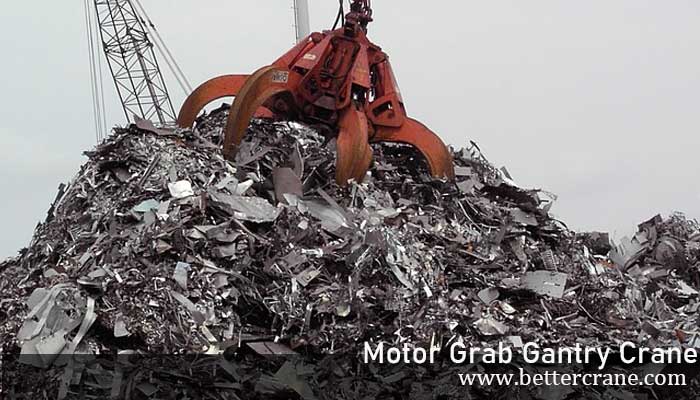

Motor Orange Peel Grabs

Features of motor orange peel grab

• The motor orange peel grabs are intended for use with cranes that have an electric supply. Depending on your crane equipment, the grab can be attached directly or via slewing units or traverse beams.
• Performance-Motor orange peel grabs match themselves to the material being handled. Transport losses are kept to a minimum. The motor orange peel grab series has many universal applications due to its optimal structural height, low center of gravity, and robust construction.
• The orange peel grab has extremely fast opening and closing times, maximizing the number of loading operations per hour.
• Economic efficiency-The maintenance points are easily accessible. The motor orange peel grabs can be equipped with automatic central lubrication to extend operational times and reduce service effort.
• Reliability -With many years of experience in bulk materials handling, our scrape handling gantry crane and high-quality grab components can meet a variety of production standards and your material handling needs.
• The shape and model of the motor orange peel grabs can be customized to meet individual needs.

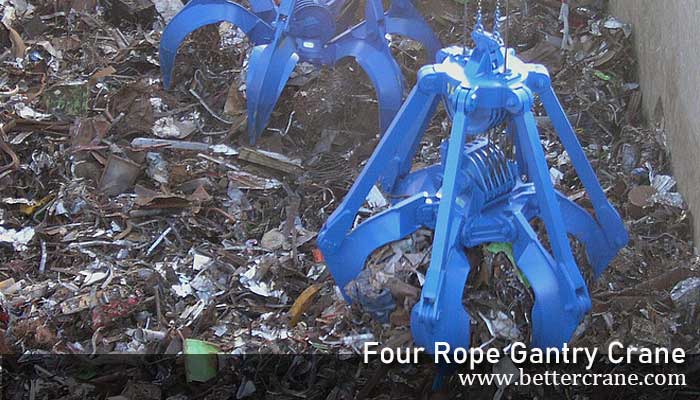

Four-Rope Orange Peel Grabs

Typically used on docks, but also in scrapyards and waste incineration plants. The grab volume is equivalent to the inner volume of closed shells; the actual total payload is greater.

Features of Four-rope orange peel grabs

• Efficiency  -The four rope orange peel grab is adjusted to match the intended use (for example, bulk density, volume). Four rope orange peel grabs are appropriate for all scrap types, including household trash, biomass, and wood chips.
• The four-rope orange peel grabs are robust, strong handlers that are low-maintenance and extremely durable.
• Good penetration behavior into bulk material is guaranteed due to their optimal ratio of dead weight to grab capacity.
• Low service effort—the maintenance points are easily accessible. Four rope orange peel grabs can be equipped with automatic central lubrication to increase operational times and reduce service effort.

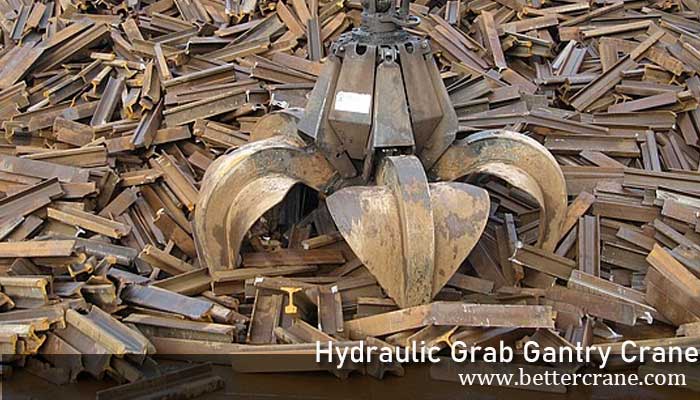

Hydraulic Orange Peel Grabs

Suitable for handling scrap, waste, stones, or recycling material. Primarily used in waste incineration plants, scrapyards, and docksides, as well as steel plants and recycling facilities.
Features of hydraulic orange peel grabs

• Advanced design-Rotary head with high load bearing capacity and integrated maximum pressure safeguarding for lifting cylinders and rotary function. Shell tips made of manganese hard steel that is highly wear resistant and has an integrated wear indicator. Large nominal diameter hoses with spiral scouring protection
• High handling frequency-Adequate shell shape and efficient hydraulic components ensure high handling capacities. The orange peel grab can safely hold even bulky materials for an extended period of time. External influences are protected from the grab hydraulics by special impact bar protection variants.
• Low maintenance: The hydraulic orange peel grab has only a few easily accessible maintenance points that can be customized to individual shape and model requirements.
