Double Girder Gantry Crane for Stone Factory 25 Ton, 30 Ton, 50 Ton

Gantry crane for stone, marble, granite handling. Single girder & double girder gantry crane for indoor & outdoor stone block & plates handling.Double Girder Gantry Crane for Stone Factory with capacity of 25 Ton, 30 Ton, 50 Ton, and up to 100 ton for sale. Check now.

Double Girder Gantry Crane for Stone Factory

Gantry type : MG series of double girder overhead crane
Lifting Capacity: 3 ~ 100t or other
Lifting Height: 2m ~ 18m or other
Span: 3m ~ 30m or other
Customized gantry cranes for stone handling are available at affordable price.

The double girder gantry cranes is designed with box shaped girder design, which is widely used for outdoor heavy loads handling, such as, port, construction, and marble and granite quarry, and processing plant.

As for stone handling gantry crane, they are typically used for handling stone (marble, granite, slate, etc. ) at stone processing factory and outdoor quarry. Stone block or cubic stonework can be lift and transfer by the gantry crane to the processing point.

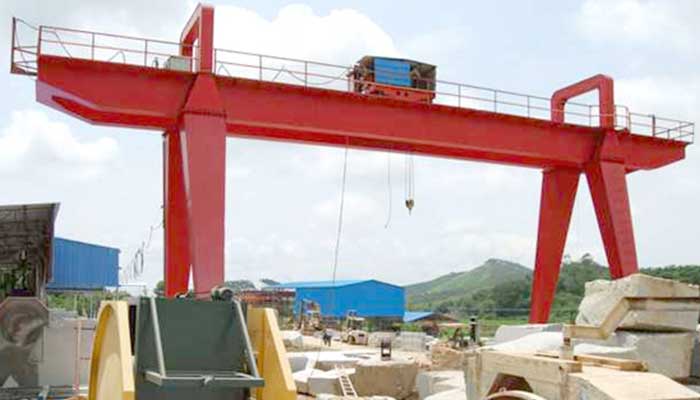

double girder gantry crane for outdoor stone block handling in quarry

Features of stone handling gantry crane

CNC cutting for high deflection precision beam girders;
Auto welding ensuring high precision welding.
Shot-blasting Sa2.5 for steel plates and structure with stress release;
Painting with a 2x2 paint layer and a zinc-rich epoxy coating;
10.9 class bolts connect girder/beam and legs;
Three-in-one motor with vertical gear motor driving;
Motors with High protection class IP55, F class, 40% ED. Reducer, motors and electrics adopt China or world brands such as Schneider, Siemens, ABM, SEW etc;
End carriage beam equipped with anti-friction bearings, cellular rubber buffers, and derailment protectors;
Anti-sway system, precise positioning.

25 ton double girder gantry crane for stone handling for sale Poland, More information about the stone handling crane, project please feel free to contact us.

Optional gantry cranes for stone handling

For large stone block handling, there are many types of block handling cranes including the overhead bridge crane, semi-gantry and full gantry design ,etc. These stone handling cranes are built for reliability and accuracy and are designed to fit into your particular processing plant and quarry conditions. ¹. Depending on the size and weight of the load, different types of gantry cranes can be used, ranging from small single girder ones to large double girder cranes

Main types of gantry cranes and its features

Full Gantry Crane Systems have two legs that move along crane tracks, which are operated for material handing in an rectangular working area where the rail installed.
Semi-gantry crane systems are useful and economical with single leg running along the rail on the ground and the other running on runway beam connected to facility. They are widely used for workshops or factory when limited space is available.
Portable Gantry Systems: These gantries are small and light, and they move on rollers or rubber wheels. They are typically used for flexible load handling, which enables loads handling from one location to another without the limitation of fixed rail track.
Adjustable gantry cranes are small cranes for light loads handing which are built with variable heights, allowing the user to change the crane's position to suit their needs.

Economical single girder gantry crane for stone block handling

Gantry cranes are typical material handling equipment for outdoor materiel handing with wide of capacity range from 500kg to 320 ton, or others. They can selected and designed based on actual material handling requirements and conditions. Based on crane structures, they can grouped into single girder, double girder, truss girder, box girder, full girder & truss girder, rail travelling and rubber tyred travelling types. Each of the type has its own features, advantages and shortcoming. And therefore, the selection of a proper stone handling gantry crane should be conducted based on your particular applications and requirements. In the following, the general features for each gantry crane are summarized as for your reference.

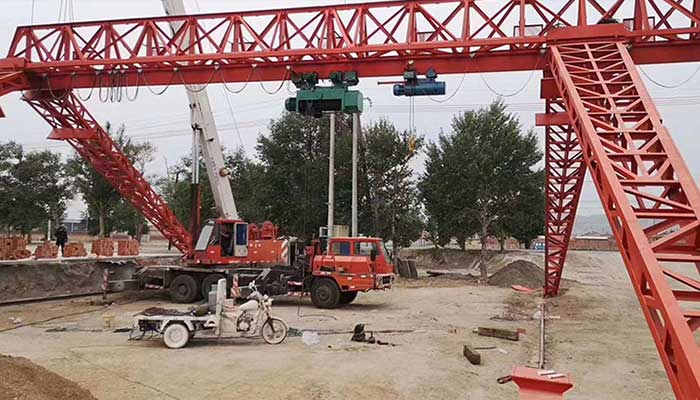

Truss gantry Crane installation for your reference

Truss gantry crane

Truss girder gantry crane is typical used for outdoor use with high wind resistance. They can be designed into single girder or double girder based on your lifting requirement and applications.

A truss gantry crane has a main girder made of a triangular truss, which strengthens the entire structure, reduces weight, and improves wind resistance The thermal expansion seamless steel legs of the truss gantry crane are jointing with (or truss legs) the main girder and the ground girder are bolted or pined to the gantry supporting legs

Rubber Tired Gantry Crane:

Rubber tired gantry cranes are gantry cranes designed with rubber tired wheels. With wheels, the rubber tyred gantry cranes provides maximum flexibility, enables loads handing much convient. bu they provide smaller lifting capacity than the rail mounted gantry cranes.Rubber tired gantry cranes can smoothly lift heavy loads to good heights.

Why to use gantry crane for stone handling

Durable gantry crane can withstand challenging environment of stone quarry
With self-supporting steel legs, the outdoor gantry cranes do not need any separate support structures.
Due to it is not connected with supporting facility, gantry crane can be easily removed when your project is completed and used in another working site.
Various types and configurations available to meet your lifting needs easily.
Wide applications for indoor and outdoor use.
Ease of use and simple operation another advantages of by adopting gantry crane for your stone processing factory. Both remote control and cabin control are available for your selection.
Due to their simple design, maintenance is minimal, saving the owners time and money.
Gantry cranes are energy efficient, helping users achieve more sustainable business operations.

Related crane for stone processing plant and industry

Besides gantry cranes, there are other types of stone handling such as overhead crane, and electric jib cranes and electric hoists.

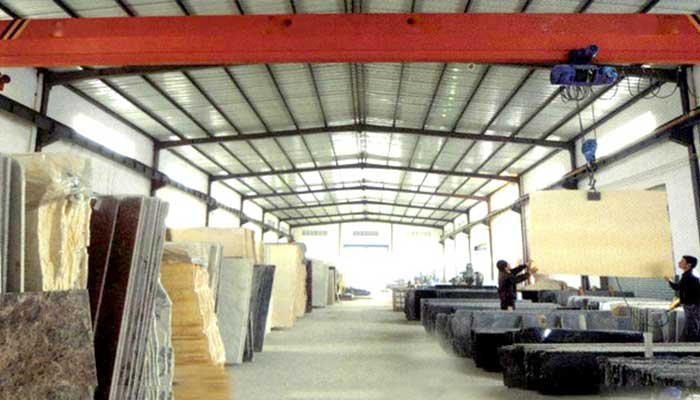

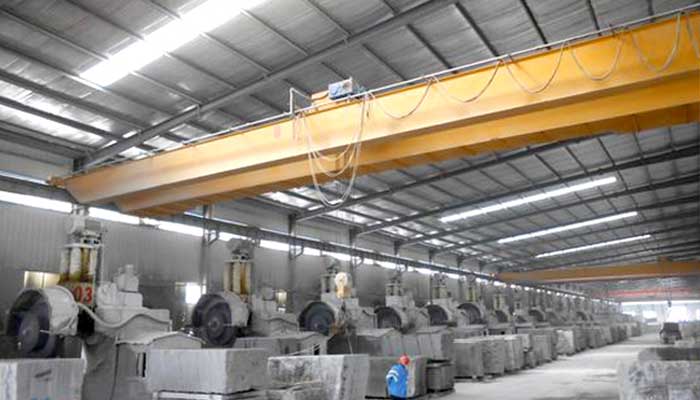

As for overhead bridge crane, they are typically used for indoor stone product handling in the processing plant, such as marble plates and granite plates, etc.
Rotary jib cranes and kbk workstation cranes are also widely used in the stone processing plant for single stone plate handing with clamps or vacuum lifter or other lifting chains and slings.

Besides, both of the overhead crane and jib cranes can be used for other operations such as machinery parts installation and maintenance, etc.
