Metal Processing

Metal Processing

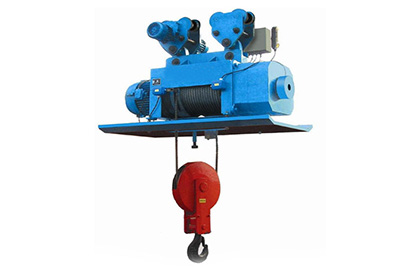

10 Ton Metallurgical Electric hoists for Hot Steel Mill Paraguay

10 ton metallurgical hoist for sale Paraguay for ladle & material handling in hot steel mill, double brakes & double limits to ensure safety, good price.

Metallurgical hoists are a type of material handling equipment, especially designed for the application in metallurgy environment for handling molten metal and other high temperature solid-state items. They can also be used as the lifting mechanism of single girder crane, single girder suspension crane, double girder crane, etc.

Main specifications of metallurgical electric hoists

  • Hoist capacity : 5 ton -65 ton,
  • Lifting height: 6-30 meter,
  •  lifting speed :3.5 -8 m/min,
  • Travelling speed: 20-30 m/min,

The metallurgy hoists can be classified into single speed metallurgy hoists and double speed metallurgy hoists based on their speed.

Metallurgical hoists should be maintained regularly to ensure their safety and longevity. The maintenance includes daily inspection, weekly inspection, monthly inspection, quarterly inspection, half-yearly inspection, and yearly inspection. The maintenance should be carried out by professional technicians.

 Key differences between metallurgical electric hoists and general use electric hoists:

Metallurgical Electric Hoists:

Metallurgical Electric Hoists:

  • Designed for use in metallurgical plants
  • Have heat-resistant motors to withstand high temperatures
  • Have explosion-proof capabilities to prevent accidents in hazardous environments
  • Often have higher weight capacities than general use electric hoists
  • Can be more expensive than general use electric hoists due to their specialized features

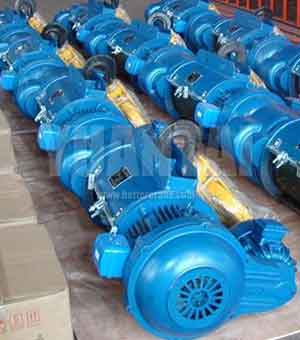

General Use Electric Hoists:

General Use Electric Hoists:

  • Designed for more general purposes
  • May not have the same level of durability or safety features as metallurgical electric hoists
  • May have lower weight capacities than metallurgical electric hoists
  • Can be less expensive than metallurgical electric hoists due to their more basic features

Features of metallurgical electric hoists

Double limits of metallurgical electric hoists

The double limits of metallurgical electric hoists refer to the upper and lower limit switches that are installed in the hoist. These switches are designed to prevent the hook from traveling beyond its safe working range, which can help to prevent accidents and damage to the equipment. The upper limit switch is designed to stop the hoist from lifting the load once it reaches a certain height, while the lower limit switch is designed to prevent the hook from descending below a certain point. By using both of these limit switches, metallurgical electric hoists can ensure safe and efficient operation.

Double brakes of metallurgical hoists

Double brakes of Metallurgical hoists are a safety feature that uses two independent braking systems to ensure that the hoist can be stopped quickly and safely in case of an emergency.

How do double brakes of Metallurgical hoists work?

Double brakes of metallurgical hoists work by using two independent braking systems to ensure maximum safety. The first brake is the primary brake, which is typically a disc brake that is directly attached to the hoist motor. The second brake is the secondary brake, which is typically a drum brake that is mounted on the hoist gearbox.

When the hoist is in operation, the primary brake is engaged to control the speed of the load and bring it to a stop. In the event of a failure or malfunction of the primary brake, the secondary brake will automatically engage to prevent the load from falling.

The double brake system provides redundancy and ensures that the hoist can safely lift and lower heavy loads in demanding industrial environments. It is an essential safety feature that helps prevent accidents and protects workers and equipment.

What are the benefits of using double brakes in Metallurgical hoists?

Double brakes in Metallurgical hoists offer several benefits, including increased safety and reliability. By having two independent brake systems, the risk of a single point of failure is greatly reduced. This means that even if one brake fails, the other brake can still hold the load, preventing accidents and damage.

Double brakes also provide better control over the hoist's movement. By using both brakes simultaneously, the hoist can be stopped more quickly and accurately, allowing for precise positioning of the load.

Additionally, double brakes can extend the lifespan of the hoist by reducing wear and tear on individual brake components. With two brakes sharing the load, each brake is subjected to less stress and strain, reducing the likelihood of premature failure.

Overall, the use of double brakes in Metallurgical hoists provides increased safety, better control, and improved longevity, making them a valuable investment for any industrial operation.

 Are double brakes mandatory for all Metallurgical hoists?

Double brakes are not mandatory for all Metallurgical hoists, but they are highly recommended for safety reasons. Double brakes provide an additional layer of protection in case the primary brake fails, which can prevent accidents and injuries. Some regulatory bodies may require double brakes for certain types of hoists or in specific industries. It is important to consult the manufacturer's guidelines and applicable regulations to determine the appropriate safety measures for your specific situation.

 How often should double brakes be inspected and maintained?

Double brakes are an essential safety feature in metallurgical hoists. The frequency of inspection and maintenance of double brakes depends on several factors, including the frequency of use, the load capacity of the hoist, and the operating environment.

However, it is recommended that double brakes be inspected and maintained at least once a year by a qualified technician. Additionally, any time the hoist undergoes repairs or modifications, the double brakes should be inspected and tested before being put back into service.

Regular inspections and maintenance of double brakes can help prevent accidents and ensure that the hoist operates safely and efficiently. It is important to follow the manufacturer's recommendations for inspection and maintenance, as well as any applicable safety regulations or standards.

 10 ton 12m metallurgical hoists for sale, a projects in Paraguay

Yuantai Crane and Hoists is a leading manufacturer and supplier of industrial cranes and hoists. They have recently received an inquiry from a customer in Paraguay who is looking to purchase a 10 ton 12m metallurgical hoist for use in their steel manufacturing plant. The customer has specific requirements for the hoist, including heat-resistant motors, explosion-proof capabilities, and double limit switches.

Yuantai Crane and Hoists recommends their YHII metallurgical electric hoist for this customer, which is designed specifically for use in metallurgical plants. The hoist has a weight capacity of 10 tons and can lift loads up to 12 meters high. It is equipped with heat-resistant motors that can withstand high temperatures up to 180°C and explosion-proof capabilities to prevent accidents in hazardous environments. The hoist also features double limit switches to ensure safe operation.

Metallurgical electric hoist 10 ton project for Paraguay

  • Metallurgical electric hoist
  • Capacity: 10 ton
  • Lifting height:12M
  • Power supply : 380V50HZ3P
  • Project location: Paraguay
After reviewing the specifications and pricing, the customer agrees to purchase the YHII metallurgical electric hoist from Yuantai Crane and Hoists. The hoist is shipped to Paraguay and installed in the customer's steel manufacturing plant. The customer is satisfied with the performance of the hoist and reports that it has increased their efficiency and productivity in their operations.

Finished pictures of 10 ton electric hoist for sale Paraguay

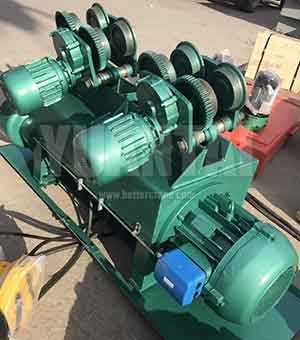

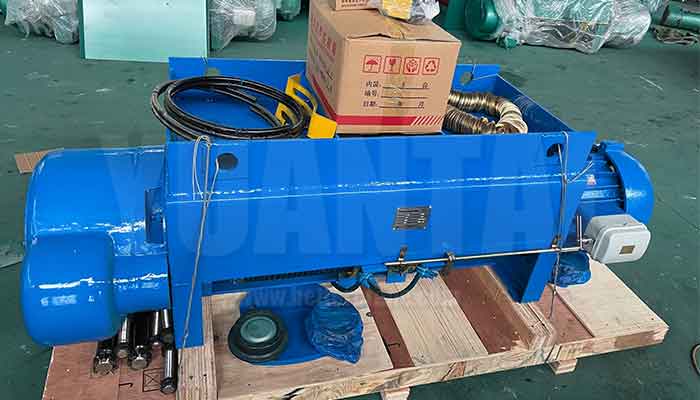

10 ton metallurgical electric hoist for sale Paraguay 10 ton metallurgical electric hoist for sale Paraguay

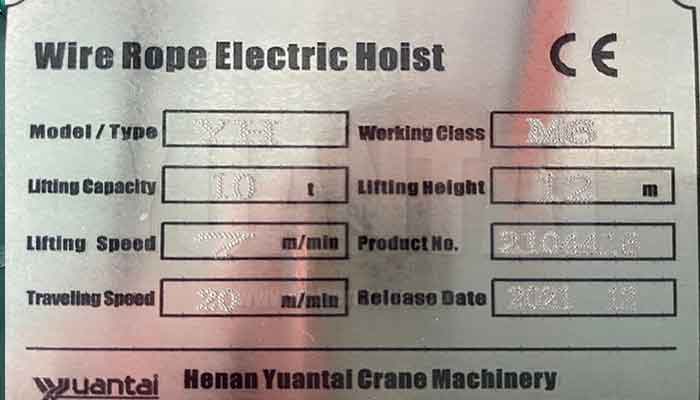

 Nameplate of the 10 ton electric hoist  for metallurgical use   Nameplate of the 10 ton electric hoist  for metallurgical use

Overall, Yuantai Crane and Hoists was able to provide a high-quality metallurgical electric hoist that met the specific requirements of their customer in Paraguay, resulting in a successful sale and satisfied customer.

Types of electric hoists for sale Paraguay

Type

Description

Wire rope electric hoist

Light and small lifting equipment that can be installed on steel to complete work alone or used with single girder overhead crane, double girder overhead crane, hoist gantry crane and jib crane

Chain electric hoist

Widely used in various industries for material handling. They can handle material with a lifting capacity of 0.5 ton to 35 ton, lifting height of 3 to 50m, with the working class of M3 and M4

Double speed electric hoist

Designed for heavy-duty applications and can lift up to 100 tons

European type electric hoist

Designed for light-duty applications and can lift up to 80 tons

Explosion-proof electric hoist

Designed for hazardous environments such as chemical plants and oil refineries

Metallurgical electric hoist

Designed for high-temperature environments such as steel mills

Mini electric hoist

Designed for light-duty applications and can lift up to 500kg

The price of a wire rope electric hoist can vary depending on the brand, model, capacity, and other factors. If you want to know the specific electric hoist price for sale  Paraguay, please feel free to send us an inquiry down below.

If you’re looking for a 10 ton metallurgical hoist for sale in Paraguay, you might want to consider contacting Yuantai crane. They offer customized electric hoists that can meet your specific needs and requirements. Yuantai crane is one of the leading manufacturers of electric hoists in China and has been providing high-quality products and services to customers worldwide. Buying from China can be a great option as it can offer competitive prices, high-quality products, and excellent customer service. If you’re interested in learning more about Yuantai crane and their products, you can visit their website or contact them directly.
