Guide to Buying 40-65 Ton RMG Crane for Tank Containers

Rail-Mounted Gantry (RMG) cranes are essential for the safe and efficient handling of tank containers, especially in specialized environments like ports, chemical plants, and bulk liquid logistics centers. These cranes are designed to manage large, heavy containers filled with liquids, which can present challenges due to their weight and the shifting movement of liquid cargo.

In facilities such as chemical plants or busy port terminals, where tank containers are frequently used to transport hazardous chemicals, food-grade liquids, or industrial materials, precision is crucial. RMG cranes offer the necessary stability and control to handle these containers safely, preventing spills and accidents while optimizing operational efficiency.

Their ability to lift and move containers with accuracy is essential in maintaining smooth workflows in these environments, reducing downtime and enhancing safety. Additionally, RMG cranes help minimize the risks associated with handling liquids, such as liquid surging during lifting or improper placement, which can lead to costly damage or safety incidents.

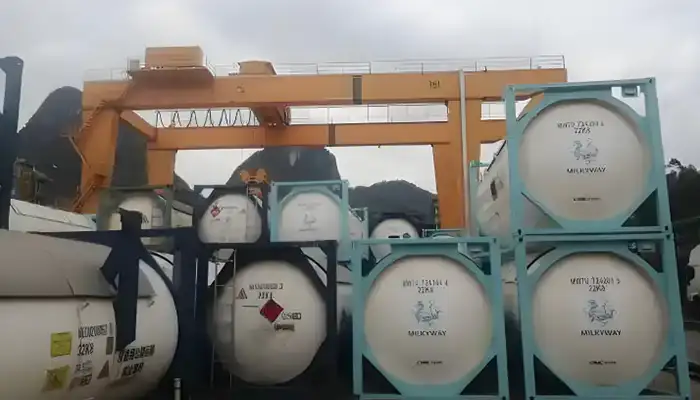

rail mounted gantry crane for tank container handling

rail mounted gantry crane for tank container handling

Scope

This section will cover the key factors to consider when purchasing a 40-ton to 65-ton Rail-Mounted Gantry (RMG) crane for handling tank containers. We'll focus on the following aspects:

Technical Specifications：The crane’s lifting capacity (40 to 65 tons) is essential for handling filled tank containers that typically weigh between 20,000 kg to 30,000 kg. Understanding the crane’s lifting power is vital to ensure it meets the demands of the specific containers being handled.
Crane Design and Features：Features such as adjustable lifting heights and rotating spreaders are necessary to accommodate a variety of tank container sizes. These features also help with precise placement, which is crucial when containers contain liquids that may shift during handling.
Operational Efficiency： A well-designed RMG crane should enhance terminal throughput by reducing cycle times and improving container handling efficiency. We’ll look into how crane features, like automated systems and remote control capabilities, can contribute to faster and safer operations.
Handling Liquid Cargo：Tank containers carry liquid goods, which pose specific challenges. We’ll explore features like liquid stabilization systems that reduce liquid surging and prevent spillage during lifting.

By covering these areas, we’ll help you understand the key factors to ensure you select the right crane—one that meets both your lifting capacity needs and operational goals for handling tank containers in demanding environments.

Tank Container Handling Requirements

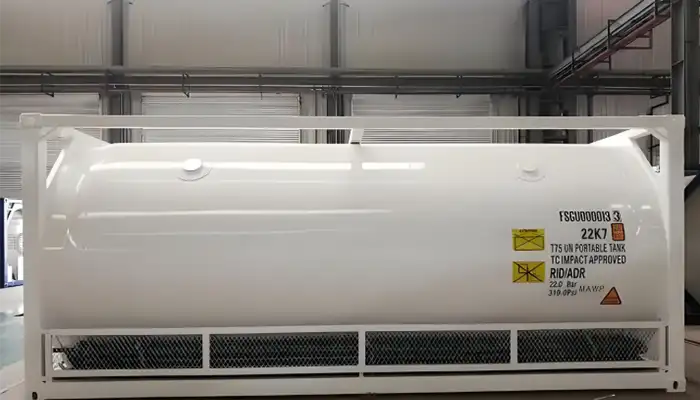

Typical Weights of Tank Containers

Tank containers come in different sizes and weights depending on whether they are empty or filled. Understanding these weight ranges is crucial for selecting the appropriate crane for the job:

Empty Tank Containers: These typically weigh between 2,000 kg to 4,500 kg. While lighter than filled containers, they still require careful handling to prevent accidents or damage during lifting and transportation.
Filled Tank Containers: When filled, tank containers can weigh anywhere from 20,000 kg to 30,000 kg. These are the typical loads that a 40-ton to 65-ton Rail-Mounted Gantry (RMG) crane is designed to handle. The weight of a filled tank container, combined with the liquid inside, places significant stress on the crane, making it essential to have precise control over the lifting process.

Handling Challenges

Handling tank containers, particularly those filled with liquids, comes with its own set of challenges. RMG cranes must be designed to manage these challenges effectively to ensure safety and operational efficiency.

Liquid Surging During Lifting: One of the main issues when handling tank containers filled with liquids is the liquid surging. As the crane lifts the container, the liquid inside can move and shift, creating instability. This can affect the balance of the container and make it harder to control the lift, increasing the risk of spills or accidents. Cranes must have systems in place to stabilize the liquid and reduce surging during the lift, ensuring a smooth and safe operation.
Stability of Hazardous or Food-Grade Liquids: Many tank containers transport hazardous chemicals or food-grade liquids, which require special handling. Hazardous materials can be volatile or reactive, while food-grade liquids need to be handled with care to avoid contamination. Ensuring that the crane can handle these containers without causing spillage or compromising the contents is crucial. Features like customized lifting gear and safety systems are necessary to handle these sensitive cargos safely.
Ensuring Smooth and Precise Lifting: The precision of the crane’s lifting and placement operation is essential for safe tank container handling. The crane must be able to position the container accurately, especially in crowded or constrained environments like port terminals or chemical plants. The goal is to prevent any sudden shifts or movements that could cause accidents. For this, cranes often come with features like adjustable lifting heights, rotating spreaders, and advanced control systems that help ensure the container is lifted and moved precisely, preventing spills, shifting, or accidents during operation.

By addressing these handling challenges through specialized crane features, the risks associated with lifting tank containers can be minimized, ensuring that operations are both safe and efficient.

tank container handling

Key Features to Consider in a 40 Ton to 65 Ton RMG Crane

When purchasing a Rail-Mounted Gantry (RMG) crane for handling tank containers, several key features must be carefully considered to ensure the crane can meet operational demands. The following features are particularly important for handling the typical 20-ton to 30-ton filled tank containers, and any additional requirements like container insulation or heating.

Lifting Capacity

The lifting capacity of the crane must be carefully matched to the weight of the tank containers being handled:

Weight of Tank Containers: Filled tank containers can weigh between 20,000 kg to 30,000 kg (20-30 tons), which is the standard range for which a 40-ton to 65-ton RMG crane is designed. It’s essential to choose a crane that can safely and efficiently lift these loads, especially when the weight is near the crane’s maximum capacity.
Additional Features: Some tank containers are equipped with insulation or heating elements to maintain the temperature of the liquids inside, adding to the overall weight of the container. Cranes must be able to handle these additional weights without compromising lifting safety or stability. Therefore, consider a crane with a slightly higher capacity or one that can accommodate varying load conditions.

Specialized Hoisting Mechanisms

Handling tank containers requires customized lifting gear to ensure safety and efficiency during the operation:

Customized Slings and Hooks: Tank containers are often equipped with lifting points that require specific slings or hooks for secure attachment. Custom-designed slings and hooks help ensure the container is lifted without any risk of slippage or damage, especially when containers have irregular shapes or additional features like insulation.
Liquid Stabilization Systems: Tank containers often carry liquids, which can shift during the lifting process. This movement, known as liquid surging, can destabilize the container, making it harder to control. To address this, liquid stabilization systems can be integrated into the crane to minimize surging and ensure the container remains steady during lifting and placement. These systems typically include dampers or shock-absorbing mechanisms that prevent the liquid from shifting too much during the process.

Adjustable Lifting Heights

Different tank containers come in various sizes, from standard models to oversized versions. Therefore, the crane should be able to accommodate a wide range of container types:

Adaptability for Different Container Sizes: A crane with adjustable lifting heights allows for easy handling of tank containers with varying dimensions, whether standard or oversized. This feature ensures that the crane can be used in terminals or warehouses where containers of different heights and shapes are regularly handled.
Flexibility for Diverse Operations: Being able to adjust the lifting height is crucial for positioning containers at different stacking levels or for lifting from various locations. This flexibility contributes to better space utilization in the terminal or warehouse, improving operational efficiency.

Rotating Spreaders

Tank containers often have an uneven distribution of weight, which can make them harder to handle and position accurately. A crane with rotating spreaders is essential for ensuring precise container orientation during lifting:

Precise Container Positioning: A rotating spreader allows the crane to rotate the container as it lifts, ensuring that it is oriented correctly during handling. This is especially important when dealing with containers that have uneven weight distribution, such as those filled with liquid. The rotating spreader helps to keep the load balanced and stable throughout the lifting and placement process.
Increased Control: This feature adds a level of control that prevents the container from tilting or swinging, which is essential for maintaining safety and preventing damage during operations. By adjusting the orientation of the container, rotating spreaders help improve the overall precision of container handling, making the crane more versatile and reliable.

These key features—lifting capacity, specialized hoisting mechanisms, adjustable lifting heights, and rotating spreaders—are essential for ensuring that an RMG crane can handle tank containers safely and efficiently. Choosing the right combination of features will not only improve safety but also increase operational efficiency in environments like ports, chemical plants, and bulk liquid logistics centers.

Crane Design and Structure

The design and structure of a Rail-Mounted Gantry (RMG) crane are critical to its performance, safety, and efficiency, especially when handling heavy, liquid-filled tank containers. The following features should be carefully evaluated when selecting an RMG crane for tank container handling:

Fixed Rail vs. Mobility

Choosing between a fixed-rail or mobile crane setup largely depends on the specific operational needs and layout of the terminal or facility.

Fixed-Rail RMG Cranes:

Enhanced Stability: Fixed-rail RMG cranes are typically preferred for container handling in environments where stability and precision are paramount. Once installed, these cranes remain on a fixed track, providing a consistent, stable foundation for lifting and placing containers.
Precision in Container Placement: The fixed nature of the track allows for more precise control over container placement, which is crucial when handling liquid-filled tank containers that need to be positioned accurately to prevent spills or surging.
Long-Term Operations: Fixed-rail cranes are ideal for large terminals or chemical plants with a high volume of operations in a dedicated area. They offer efficiency and durability over the long term.

Mobile Cranes:

Flexibility and Mobility: Mobile cranes are designed to move along tracks or be relocated, making them ideal for operations where cranes need to be repositioned or used in multiple areas. This mobility is useful for terminals or facilities with varying operations across different sections.
Considerations for Layout: The decision to use a mobile crane depends on the layout of the terminal or facility. If space is limited or if the crane needs to serve multiple locations within the same yard, a mobile crane may offer more flexibility.
Potential Trade-Offs: While mobile cranes offer flexibility, they may not provide the same level of stability and precision as fixed-rail cranes, especially when handling sensitive or heavy cargo like tank containers.

Crane Stability

Stability is a key factor in the design of any RMG crane, particularly when handling heavy, liquid-filled containers. The crane must maintain its structural integrity during the lifting and transportation of these large, often unstable loads.

Structural Integrity: The crane must be built with high-strength materials such as steel to withstand the forces generated by lifting heavy tank containers. The structural design should ensure that the crane can support the full weight of the container without bending or warping.
Balance Considerations: Handling liquid-filled containers introduces additional challenges, such as liquid surging during lifting. The crane’s structure must be designed to handle these dynamic forces, ensuring that the crane remains stable throughout the operation.
Weight Distribution: The crane must be engineered with proper weight distribution in mind, including counterweights if necessary. This is especially important for maintaining balance when lifting containers with uneven or shifting loads.

Weather Protection and Corrosion Resistance

RMG cranes often operate in harsh environments, such as ports near coastal areas or in industrial facilities exposed to chemicals and extreme weather conditions. In these environments, corrosion resistance is a critical design consideration.

Corrosion-Resistant Materials: For cranes operating in marine or chemical environments, the materials used must be resistant to corrosion. Components such as the crane frame, lifting gear, and tracks should be made from stainless steel, galvanized steel, or treated with corrosion-resistant coatings to prevent rust and degradation over time.
Protective Coatings: Special coatings or paint, such as epoxy-based anti-corrosion coatings, should be applied to exposed parts of the crane to protect it from saltwater, chemicals, and other corrosive elements. This ensures the crane's longevity and reduces maintenance costs.
Environmental Considerations: Cranes used in extreme weather conditions should be designed to withstand high humidity, salt exposure, and temperature fluctuations, all of which can accelerate wear and tear. These considerations are especially important in ports, chemical plants, and offshore facilities.

Control Systems

The crane's control systems are central to its performance, particularly when it comes to lifting, hoisting, and moving tank containers. Advanced control systems enhance safety, precision, and efficiency, helping to reduce human error during operation.

Precise Control of Operations: Modern RMG cranes come equipped with advanced control systems that allow operators to control lifting speeds, container positioning, and other movements with great accuracy. These systems help ensure that the crane lifts and places containers smoothly, which is critical when handling liquid-filled containers.
User-Friendly Interfaces: A crane with a user-friendly interface allows operators to easily monitor the crane’s functions, including load weight, height, and movement speed. Clear visual displays and intuitive controls reduce the chances of operational mistakes, improving safety.
Automation and Remote Control: Automation features, such as auto-lifting or remote control operation, are becoming more common in modern RMG cranes. These systems can automate certain functions, such as positioning or adjusting lifting heights, while remote control options allow operators to perform tasks from a safe distance, particularly in hazardous environments.
Safety Features: Advanced control systems are often equipped with safety mechanisms, such as load sway detection, anti-collision features, and emergency stop functions. These features help prevent accidents and ensure safe crane operations, especially when handling hazardous or heavy containers.

By considering the crane design and structure—including whether to opt for a fixed-rail or mobile crane, ensuring stability, incorporating weather protection, and utilizing advanced control systems—you can select a crane that offers reliability, efficiency, and safety in tank container handling operations. Each of these design elements plays a critical role in ensuring that the crane operates efficiently in demanding environments while handling sensitive and heavy loads like liquid-filled tank containers.

Specialized Features for Tank Container Handling

When handling tank containers, particularly those containing liquids, certain specialized features are essential for ensuring safe, efficient, and precise operations. These features address the unique challenges associated with lifting and moving liquid-filled containers, such as controlling liquid surges, ensuring safety, and maintaining the temperature of sensitive cargo.

Liquid Stabilization Systems

One of the main challenges in handling tank containers filled with liquids is liquid surging, which occurs when the liquid inside the container shifts during lifting. This movement can destabilize the container, causing it to tilt or sway, and may even result in spillage or accidents.

Dampers and Shock-Absorbing Technologies: To reduce the impact of liquid surging, liquid stabilization systems integrate dampers or shock-absorbing technologies that control the movement of liquid within the container. These systems minimize the risk of the container tipping over or becoming difficult to control during lifting and transportation.
Smooth and Controlled Lifting: These stabilization features ensure a smoother and more controlled lifting process, improving crane precision and safety. They allow operators to manage the lifting process more effectively, even when dealing with highly unstable or hazardous liquids.

Safety Features

Given the heavy and potentially hazardous nature of tank containers, incorporating safety features into the crane design is crucial. These features help protect both operators and the surrounding environment, reducing the likelihood of accidents or damage during crane operations.

Emergency Stop Mechanisms: In case of an unexpected issue, cranes equipped with emergency stop functions can immediately halt all operations, preventing further damage or danger. This safety feature ensures that any operational anomalies can be addressed quickly to avoid accidents.
Load Sway Protection: During lifting, load sway protection systems detect and minimize any swinging or oscillation of the container. This is especially important when handling heavy or liquid-filled containers, as even small movements can result in container damage or accidents. These systems help ensure the container remains steady throughout the lifting and placement process.
Anti-Collision Systems: Anti-collision systems are designed to prevent accidents caused by the crane or the container colliding with nearby obstacles or other equipment. These systems use sensors or cameras to detect nearby objects and automatically adjust the crane's movements to avoid contact, ensuring safe operations in busy, high-risk environments.

Power Supply for Reefer Containers

Many tank containers, especially those carrying temperature-sensitive liquids, require refrigeration during transport and handling. The crane must be equipped with the necessary infrastructure to support these needs.

Power Outlets for Reefer Containers: Tank containers that carry refrigerated or perishable liquids need to maintain a stable temperature during loading and unloading. Cranes with integrated power outlets can supply the necessary power to these containers to keep the refrigeration systems running during the transfer process. This feature is particularly important in terminals handling food-grade liquids, pharmaceuticals, or chemicals that need to remain within specific temperature ranges.
Seamless Integration: The power supply system should be designed for easy integration with the crane's lifting system, ensuring that the power connection is simple, secure, and reliable during operations. This enables the smooth transfer of temperature-sensitive liquids without compromising the efficiency of crane operations.

Customized Slings and Hooks

Standard lifting equipment may not always be suitable for handling tank containers, especially when the contents are hazardous, sensitive, or have irregular shapes. Customized lifting equipment ensures the safe and secure handling of these specialized containers.

Specialized Slings and Hooks: Tank containers often come with unique lifting points that require custom slings or specialized hooks designed for secure attachment. These lifting accessories are tailored to the specific requirements of tank containers and ensure that they are lifted and secured properly during operation.
Preventing Shifting of Hazardous Liquids: Customized slings and hooks also help to prevent the shifting of hazardous or sensitive liquid contents during handling. These accessories can be designed with additional safety features, such as locking mechanisms or extra support, to ensure that the load remains stable and secure throughout the lifting process.
Adaptability to Different Container Designs: Depending on the size and shape of the tank container, customized slings and hooks can be adjusted to fit a wide variety of designs, whether for standard or oversized containers. This adaptability increases the crane’s versatility and ensures safe handling of different types of tank containers.

These specialized features—liquid stabilization systems, safety mechanisms, power supply integration for reefer containers, and customized slings and hooks—are essential for ensuring safe, precise, and efficient handling of tank containers. Incorporating these features into an RMG crane ensures the crane is well-suited to meet the unique challenges of lifting and transporting liquid-filled, hazardous, or temperature-sensitive containers. These added capabilities not only improve operational safety but also enhance overall crane performance and container handling efficiency.

Operational Efficiency and Throughput

When selecting a Rail-Mounted Gantry (RMG) crane for tank container handling, operational efficiency and throughput are critical factors that impact both the effectiveness of terminal operations and the overall logistics flow. Key features and design considerations can directly influence how quickly containers are handled, how much space is utilized, and how much human intervention is needed.

Maximizing Yard Space

One of the key challenges in busy port terminals and logistics centers is maximizing the use of available space. A well-designed RMG crane can significantly enhance space efficiency in the yard, which is essential for optimizing container storage and handling operations.

Efficient Stacking and Container Placement: The design of the crane should allow for optimal stacking of containers. A crane with flexible lifting heights and an adjustable spreader can handle a variety of container sizes and ensure that containers are stacked as efficiently as possible without wasting valuable yard space. The crane’s ability to position containers tightly together and at varying heights also maximizes the usable area in storage yards.
Minimizing Ground Footprint: Cranes that are compact but powerful can help in utilizing yard space more effectively. A fixed-rail RMG crane with an efficient structure and layout can contribute to high-density stacking without the need for excessive space between containers, ultimately improving the terminal’s space efficiency.

Throughput Rates

Throughput, or the rate at which containers are handled, is directly influenced by the efficiency of crane operations. Faster crane cycle times lead to higher throughput, which in turn improves terminal efficiency and reduces overall operational costs.

Cycle Time Efficiency: The ability of the crane to complete lifting, moving, and stacking operations quickly is crucial for handling high volumes of containers. Optimizing the crane’s lifting speed, travel speed, and load positioning speed can reduce downtime and speed up container turnover times.
Impact on Logistics: Efficient throughput ensures that cargo is quickly moved through the terminal, helping to meet tight delivery schedules. This is especially critical in industries such as bulk liquids or chemicals, where the timely handling of tank containers can be crucial to meeting client demands and regulatory requirements.

Automation and Remote Control

In today’s fast-paced and technology-driven logistics industry, automation plays a key role in improving crane operations. Automated and remote-controlled cranes provide significant benefits in terms of precision, speed, and reduced operational errors.

Enhanced Operational Precision: Automation systems can be programmed to handle crane movements with precise control, reducing the likelihood of human error. This is particularly important when handling heavy or hazardous loads like tank containers, where small mistakes can lead to major accidents or delays.
Remote Control for Improved Flexibility: Remote control systems allow crane operators to manage lifting and transport operations from a safe distance, reducing the risk of accidents while enabling greater flexibility in managing multiple tasks. With remote control, operators can handle complex operations such as precise container placement, especially in crowded environments or when dealing with specialized containers.
Boosting Throughput: Automation and remote control contribute directly to improved throughput rates, as the crane can operate at optimal speeds and with minimal intervention. Automated systems can also work around the clock, reducing downtime and increasing operational capacity.

Dual Lift Capabilities

For terminals that handle a high volume of tank containers, dual lift capabilities can be a game-changer. Cranes equipped with the ability to lift two containers simultaneously can significantly improve operational efficiency during busy periods.

Handling Two Containers at Once: With dual lift cranes, two containers can be handled simultaneously, effectively doubling the crane’s throughput during peak times. This feature is especially valuable in busy ports or terminals with high container turnover rates, where fast container handling is necessary to meet tight schedules and minimize congestion.
Improved Resource Allocation: Dual lift cranes also help optimize resource allocation, as fewer cranes may be needed to handle the same volume of containers. This reduces the overall fleet size and associated operational costs, making it easier to manage workloads and improve resource efficiency.
Enhanced Throughput During High-Demand Periods: During peak periods, such as seasonal shipping surges or urgent deliveries, dual lift capabilities enable cranes to work faster and more efficiently, helping to keep terminal operations on track and minimize delays in container processing.

These operational efficiency features—maximizing yard space, enhancing throughput rates, incorporating automation and remote control, and dual lift capabilities—play a vital role in optimizing the overall performance of tank container handling operations. A crane equipped with these capabilities can streamline operations, increase container throughput, and ultimately contribute to a more efficient and cost-effective terminal or logistics center. These design considerations are essential for maintaining smooth operations, meeting high demand, and ensuring the timely handling of critical cargo.

Maintenance and Durability

When investing in a 40-ton to 65-ton Rail-Mounted Gantry (RMG) crane for tank container handling, ensuring the crane's long-term performance and durability is crucial. Cranes operating in demanding environments—such as ports, chemical plants, and bulk liquid logistics centers—require regular maintenance and durable components to handle heavy, specialized loads safely and efficiently. Below are the key factors to consider regarding maintenance and durability:

Maintenance Requirements

Crane maintenance is essential for ensuring consistent performance and safety, especially when handling specialized, heavy loads like tank containers. Regular maintenance helps identify potential issues early, reducing the risk of unexpected downtime and expensive repairs.

Routine Inspections and Checks: Routine checks, including visual inspections of structural components, lifting mechanisms, and control systems, should be performed regularly to ensure that everything is in working order. These inspections help identify any wear and tear before it can escalate into a significant issue.
Lubrication and Cleaning: Proper lubrication of moving parts, such as the hoisting mechanism, rails, and wheel assemblies, helps minimize friction and prevent premature wear. Cleaning the crane’s components regularly also helps prevent buildup of debris, dirt, and corrosion-causing materials that could impact crane performance.
Inspection Intervals: Maintenance intervals should be carefully planned, typically on a monthly, quarterly, or annual basis, depending on the level of crane usage and environmental conditions. Frequent checks are necessary for cranes handling heavy loads, particularly in environments prone to corrosion or high humidity.

Longevity of Crane Components

The longevity of the crane is largely determined by the materials and components used in its construction. Choosing high-quality materials and protective coatings will ensure that the crane continues to perform well over the years, even under harsh conditions.

High-Strength Steel: Using high-strength steel for the crane’s structural frame ensures that it can handle heavy loads and high-stress environments without compromising its integrity. This material offers a balance of strength and flexibility, making it ideal for heavy-duty applications.
Anti-Corrosive Coatings: Cranes working in marine environments or chemical plants are particularly vulnerable to corrosion. To combat this, cranes should be equipped with anti-corrosive coatings that protect the steel from rust and degradation. These coatings also reduce the need for frequent maintenance, helping to keep operational costs down.
Durable Components: Other durable materials, such as stainless steel, galvanized steel, or coated alloys, should be used for components exposed to heavy wear, like hooks, slings, and lifting gears. Choosing corrosion-resistant materials ensures longer-lasting performance and reduces the risk of failure.

Service Availability and Spare Parts

Quick access to spare parts and service support is essential for minimizing downtime and ensuring that maintenance is completed efficiently.

Easy Access to Spare Parts: Opting for a manufacturer that offers readily available spare parts is vital. Cranes that require specialized parts or components should have a clear supply chain for quick delivery and replacement.
Manufacturer Support Services: Strong manufacturer support services can help ensure that any technical issues are resolved quickly and that the crane is returned to service with minimal delay. This includes installation, periodic servicing, and emergency support. Manufacturers who offer comprehensive warranties, training, and maintenance contracts will provide added peace of mind.
Training and Documentation: Access to user manuals and maintenance training ensures that operators and maintenance teams can carry out necessary tasks properly. Regular training also improves the overall safety and efficiency of crane operations.

Upkeep of Liquid Stabilization Systems

Tank container handling involves unique challenges, such as liquid surging and load instability. Liquid stabilization systems are crucial for maintaining safety and efficiency during operations, but they also require dedicated maintenance.

Damping Systems: Cranes handling liquid cargo must be equipped with dampers and shock-absorbing technologies to prevent dangerous shifts in liquid cargo during lifting. These systems should be regularly inspected and maintained to ensure they are functioning properly, preventing spills or accidents.
Specialized Lifting Gear: Lifting gear, such as customized slings and hooks, should be regularly checked for wear and tear. Proper maintenance ensures the lifting gear remains safe and effective, preventing damage to the tank container or its contents. Additionally, ensuring the gear is suitable for the weight and type of container being lifted minimizes the risk of operational failure.
System Testing: Regular testing of liquid stabilization systems ensures that the crane is capable of handling the dynamic forces associated with lifting tank containers filled with liquid cargo. This includes ensuring that damping systems are properly calibrated to reduce sway and ensure smooth operation.

By focusing on these maintenance and durability factors—regular inspections, high-quality materials, easy access to spare parts, and upkeep of specialized systems—you can ensure that your RMG crane operates efficiently and safely over the long term. Proper maintenance helps extend the crane's lifespan, reduce the risk of unexpected downtime, and maintain the safety of both workers and equipment, making it a valuable investment for high-capacity tank container handling operations.

Cost Considerations

When purchasing a 40-ton to 65-ton Rail-Mounted Gantry (RMG) crane for tank container handling, it's essential to evaluate both the initial purchase price and the ongoing operating costs. A comprehensive cost analysis ensures that the crane will deliver optimal performance and a strong return on investment (ROI) over time. Here’s a breakdown of the key cost considerations:

Initial Purchase Price

The initial purchase price of an RMG crane is influenced by several factors, each affecting the overall cost. It's important to consider the following:

Crane Design and Specifications: The design of the crane—whether it’s a fixed-rail or mobile RMG crane—impacts the base price. Fixed-rail cranes tend to be more expensive due to their greater stability and precision in operations. However, they are often more cost-effective for high-volume, dedicated terminals. Mobile cranes, while more flexible, may come at a higher price due to the added mobility features.
Lifting Capacity: The crane’s lifting capacity is a significant determinant in the purchase price. RMG cranes with higher lifting capacities, such as those in the 40-ton to 65-ton range, will naturally cost more due to the larger size and robust materials required to safely handle heavier tank containers, including those filled with liquids.
Specialized Features: Additional features designed specifically for tank container handling, such as liquid stabilization systems, customized slings and hooks, and power outlets for reefer containers, will add to the base cost. Specialized lifting gear, like rotating spreaders for uneven weight distribution, can also increase the purchase price.

Operating Costs

While the initial purchase price is a significant factor, the ongoing operating costs will also play a major role in determining the crane’s total cost of ownership over its lifespan. Key operational expenses include:

Energy Consumption: RMG cranes are typically powered by electricity, and energy consumption can vary depending on the crane's capacity, load weight, and operational frequency. Efficient energy management systems or energy-saving options, such as regenerative drives, can help reduce operating costs in the long term.
Routine Maintenance: Regular maintenance is essential for keeping the crane running smoothly and avoiding unexpected breakdowns. Costs for routine maintenance, including inspections, lubrications, and component replacements, should be factored into the overall operating costs. The complexity of specialized features, such as liquid stabilization systems, may increase maintenance needs.
Repair Costs: Over time, cranes are subject to wear and tear, and repairs are inevitable. The cost of replacing worn parts, repairing mechanical components, or addressing issues related to the lifting system can add up, especially for cranes operating in demanding environments like ports and chemical plants.

Return on Investment (ROI)

Calculating the return on investment (ROI) is crucial to understanding how quickly the crane will pay off and start contributing to profit generation. Key considerations for ROI include:

Efficiency Gains: A higher-capacity crane can handle tank containers more efficiently, reducing cycle times and increasing throughput. With improved efficiency, cranes can handle more containers per hour, leading to faster loading and unloading operations, which is especially important in high-volume terminals.
Throughput Improvements: The ability to handle containers more efficiently translates directly into higher throughput rates. This means that the crane will be able to process a greater number of tank containers, improving the terminal's overall productivity and reducing bottlenecks.
Long-Term Cost Savings: Investing in a high-quality, efficient crane can lead to long-term cost savings. For example, choosing a crane with low maintenance needs and energy-efficient features can lower operating costs over its lifespan, contributing to a higher ROI.
Operational Safety and Reduced Risk: Cranes equipped with advanced safety systems and liquid stabilization technologies reduce the risk of accidents, spills, and downtime, leading to fewer disruptions and lower liability costs.

Customization Costs

Customization costs are another consideration that can influence the final price of the crane. Tailoring the crane to meet specific operational needs and handling requirements can increase the overall cost, but can also improve performance in specialized applications.

Liquid Stabilization Systems: To prevent dangerous liquid surges and spills during lifting, many tank container handling operations require liquid stabilization systems. These systems can add significant cost to the crane, as they require specialized design and integration.
Reefer Container Power Outlets: For terminals handling temperature-sensitive liquids or reefer containers, integration of power outlets to maintain refrigeration during loading and unloading may be required. The added power infrastructure can increase the crane's purchase price.
Anti-Corrosion Coatings: Cranes operating in harsh environments, such as marine or chemical plants, often require anti-corrosion coatings to withstand exposure to saltwater, chemicals, and extreme weather. These coatings can add to the cost, but they extend the crane's lifespan by protecting it from corrosion.
Specialized Lifting Equipment: Customized slings, hooks, and spreaders are often necessary for handling tank containers safely. These can be specifically designed to secure the containers and prevent shifting of hazardous or sensitive liquid contents. The design and manufacturing of these custom components will increase the overall cost.

When evaluating the total cost of a 40-ton to 65-ton RMG crane for tank container handling, it’s important to consider both initial purchase price and ongoing operating expenses. By understanding the costs involved—energy consumption, maintenance, repair expenses, and the potential for ROI through enhanced operational efficiency—you can make an informed decision that ensures long-term value. Additionally, customization costs for features like liquid stabilization systems, power outlets for reefer containers, and anti-corrosion coatings should be carefully weighed to meet your terminal's specific needs. Ultimately, while the upfront investment may be significant, the crane's potential to improve productivity, safety, and operational efficiency can make it a worthwhile and profitable addition to your operations.

Supplier and Manufacturer Selection

Choosing the right supplier and manufacturer is crucial when purchasing a 40-ton to 65-ton Rail-Mounted Gantry (RMG) crane for tank container handling. A reliable manufacturer not only ensures that the crane meets operational demands but also provides ongoing support throughout the crane’s lifespan. Below are key factors to consider when selecting a manufacturer:

Reputation and Reliability

Selecting a manufacturer with a proven track record is essential to ensure the crane will meet your operational needs, particularly in specialized environments like ports, chemical plants, and bulk liquid logistics centers. Here's what to look for:

Experience in High-Capacity Cranes: A reputable manufacturer should have experience in delivering high-capacity cranes designed specifically for heavy and specialized loads, such as tank containers. Look for a company with years of experience in the crane manufacturing industry and a portfolio of successful installations in similar environments.
Customer Reviews and Case Studies: Look for feedback from previous customers who have purchased similar cranes. Case studies and customer testimonials can provide valuable insights into the manufacturer’s reliability, crane performance, and support services.
Industry Certifications: Ensure the manufacturer adheres to international safety and quality standards, such as ISO certifications or other relevant industry certifications. These certifications demonstrate the manufacturer's commitment to producing safe, high-quality equipment.

Warranty and Support

A strong warranty and comprehensive after-sales support are essential to ensure the crane remains operational and reliable over the long term. Key factors to evaluate include:

Warranty Terms: Understand the warranty coverage, including the duration and what is included (e.g., parts, labor, and repairs). A longer warranty period often reflects the manufacturer’s confidence in the durability and quality of the crane.
After-Sales Support: Assess the level of customer support provided by the manufacturer. This includes access to technical support for troubleshooting, as well as the availability of parts and services. The manufacturer should offer quick response times and readily available support to minimize downtime.
Installation and Training: Consider whether the manufacturer provides installation services and training for your staff. Proper installation and training are crucial for ensuring the crane is set up correctly and operated safely, reducing the likelihood of accidents or damage.
Long-Term Maintenance Services: Ensure the manufacturer offers long-term maintenance contracts or provides guidelines for routine maintenance. Access to maintenance services ensures the crane operates smoothly and continues to perform at its best.

Customization and Engineering Services

Given the specialized nature of tank container handling, the manufacturer’s ability to provide customized solutions is a key consideration. Look for the following:

Custom Hoisting Systems: Tank containers often require specialized hoisting systems to handle varying load weights and ensure safe lifting. A good manufacturer should offer the ability to design and supply custom lifting equipment, such as slings, hooks, and spreaders, specifically tailored to your operations.
Solutions for Hazardous Liquids: If your operation involves handling hazardous or temperature-sensitive liquids, the manufacturer should be able to provide specialized equipment and systems. This could include liquid stabilization systems, reefer container power outlets, or anti-corrosion treatments. The manufacturer should have experience in creating tailored solutions for handling these specific challenges.
Engineering and Design Capabilities: A capable manufacturer should offer engineering support to adapt the crane design for specific needs, such as space constraints or environmental factors like corrosive conditions or extreme temperatures. They should be able to conduct a site assessment and customize the crane's design to ensure optimal fit and function.
Innovative Technologies: The manufacturer should be open to integrating advanced technologies such as automation, remote controls, or load sway reduction systems. The ability to integrate cutting-edge technologies ensures that the crane remains competitive and efficient in a rapidly evolving industry.

The selection of the right supplier and manufacturer is crucial for ensuring the successful operation of a 40-ton to 65-ton RMG crane for tank container handling. By focusing on reputation and reliability, warranty and after-sales support, and customization and engineering services, you can ensure that your investment will meet the specific needs of your operation and provide long-term, reliable service. A reputable manufacturer with proven experience, comprehensive support services, and the ability to offer tailored solutions will ultimately be a valuable partner in achieving efficient and safe tank container handling.

Case Studies and Industry Examples

Real-world applications of 40-ton to 65-ton Rail-Mounted Gantry (RMG) cranes provide valuable insights into their efficiency, safety, and the challenges associated with handling tank containers. Below are two case studies that highlight key factors such as efficiency improvements, safety features, and operational challenges.

Case Study 1: 50-Ton RMG Crane in a Chemical Plant for Tank Container Handling

Application: A 50-ton RMG crane was installed in a chemical plant that handles hazardous and non-hazardous liquid chemicals in tank containers. The crane was specifically designed to handle heavy containers, some of which were filled with corrosive chemicals, requiring careful management during lifting and transport.

Key Focus Areas:

Efficiency Gains: The RMG crane allowed the chemical plant to improve its throughput rates significantly by optimizing the time it took to move tank containers in and out of the storage area. Automation features in the crane’s control system enabled faster cycles and minimal downtime, reducing operational delays. This translated into better overall logistics efficiency, enabling quicker turnaround times for each tank container.
Safety Features: The crane was equipped with liquid stabilization systems to reduce the surging of hazardous liquids during movement. Load sway protection was integrated to ensure that the crane's precise movements minimized risk when lifting and unloading heavy, hazardous containers. Additionally, emergency stop mechanisms were installed to halt crane movements instantly in case of malfunction, ensuring the safety of both the equipment and personnel.
Operational Challenges Overcome: One significant challenge was the handling of containers containing corrosive chemicals that required special equipment and features to prevent leaks or accidents during lifting. To overcome this, the crane was outfitted with customized slings and hooks designed to securely hold the containers without damaging the contents. The shock-absorbing systems also helped prevent instability during the lift.

Outcome: The 50-ton RMG crane improved both safety and operational efficiency, addressing the specific needs of hazardous material handling. This case study showcases how specialized cranes can overcome significant challenges like liquid surging and handling dangerous substances, all while maintaining high throughput and safety standards.

Case Study 2: 65-Ton RMG Crane in a Port Terminal for Food-Grade Liquid Handling

Application: A 65-ton RMG crane was used in a port terminal for handling food-grade liquids stored in tank containers. These containers required precise handling to ensure product quality was maintained throughout the transport process, especially since food-grade liquids are temperature-sensitive.

Key Focus Areas:

Throughput Improvements: The high lifting capacity of the 65-ton crane allowed the port terminal to handle more tank containers per day, which improved overall throughput. The integration of dual-lift capabilities enabled the crane to handle two containers at once, significantly boosting efficiency during peak periods when container volumes are high.
Cost-Effectiveness: By increasing throughput and minimizing delays, the crane played a crucial role in reducing the operational costs associated with container handling. The integration of remote-controlled operations also allowed for better precision in positioning containers, reducing handling errors and the need for manual intervention, which further contributed to lower labor costs.
Container Handling Precision: Food-grade liquids are sensitive to temperature changes and movement during transport. The crane was equipped with liquid stabilization technologies that minimized the surging of the liquids, preventing potential spills or contamination. Additionally, the adjustable lifting heights and rotating spreaders allowed for better orientation and precise positioning of the containers, which was especially critical in maintaining the quality of the contents.

Outcome: The 65-ton RMG crane improved both efficiency and cost-effectiveness in a port terminal environment. With its dual-lift capabilities and liquid stabilization features, it enhanced throughput, ensured safety, and minimized potential product loss, especially in sensitive food-grade liquid handling.

Lessons Learned:

From these two case studies, several key insights can be gained that are valuable for future crane installations in tank container handling:

Design Adjustments for Specialized Needs: Crane design needs to be adaptable to the specific requirements of the materials being handled, whether hazardous chemicals or food-grade liquids. Custom lifting equipment (such as slings and hooks) and liquid stabilization systems are essential to maintaining safety and precision.
Efficiency Gains through Automation: Automation features, such as remote controls and dual-lift capabilities, not only improve operational throughput but also reduce human error, leading to more cost-effective and precise container handling.
Safety is Paramount: Handling hazardous or temperature-sensitive liquids requires cranes equipped with advanced safety features. The ability to prevent load sway, incorporate shock-absorbing systems, and halt movements instantly during emergencies is crucial to ensuring both the safety of the personnel and the integrity of the products.
Tailored Features for Specific Industries: The ability to customize the crane's features (such as liquid stabilization and power supply outlets for reefer containers) is vital for industries like chemical plants and food-grade liquid terminals, where product integrity and safety are top priorities.

These case studies highlight the real-world challenges and the ways in which specialized RMG cranes can address them. The application of tailored features and advanced technologies can dramatically improve efficiency, safety, and cost-effectiveness in tank container handling operations.

Conclusion

When purchasing a 40-ton to 65-ton Rail-Mounted Gantry (RMG) Crane for tank container handling, there are several critical factors to consider:

Technical Specifications: Lifting Capacity: Ensure the crane can safely handle filled tank containers (20-30 tons), with consideration for additional features such as insulation or heating that may add weight.Hoisting Mechanisms and Liquid Stabilization Systems: Choose cranes equipped with specialized slings, hooks, and lifting gear, as well as systems that minimize liquid surging for safe handling of liquids, whether hazardous or food-grade.Adjustable Lifting Heights and Rotating Spreaders: These features allow for handling a range of container sizes, ensuring versatility and precise container orientation.
Safety Features: Load Sway Protection and Anti-Collision Systems are essential for maintaining safety during lifting and transport.Emergency Stop Mechanisms and Liquid Stabilization Systems are critical for minimizing risks associated with hazardous liquids, ensuring smooth and safe operations.
Operational Efficiency: Automation and Remote Control options enhance precision and reduce human error, increasing crane throughput.Dual Lift Capabilities and thoughtful crane design can maximize space utilization, enabling more containers to be handled in less time.
Durability and Maintenance: Consider cranes made from high-strength steel with anti-corrosive coatings for increased longevity, especially in harsh environments.Routine maintenance and upkeep of liquid stabilization systems are necessary to ensure consistent performance over time.
Cost Considerations: Weigh initial purchase price against long-term operational costs and potential ROI. Customized features, such as power outlets for reefer containers or anti-corrosion coatings, may increase upfront costs but lead to significant savings over the crane’s lifespan.

Selecting the right 40-ton to 65-ton RMG crane for tank container handling is crucial for ensuring safe, efficient, and cost-effective operations, particularly in industrial, chemical, and port environments.

Capacity must match the load requirements of tank containers, accounting for both filled and potentially heated or insulated containers.
Specialized Handling Features such as liquid stabilization systems, customized slings, and rotating spreaders help improve precision and safety.
Prioritize long-term durability through materials and coatings that withstand harsh conditions, as well as maintenance support from the manufacturer for smooth, continuous operations.
Ultimately, the right crane should balance performance with cost-effectiveness, ensuring that both operational efficiency and product safety are maximized over the crane’s lifespan.

Carefully considering these factors will help you make an informed decision, optimizing your operations for better throughput, safety, and long-term value in tank container handling.

News & Blog
